Statek CX20SHG1CSM1-16.0M, 30/50/-/I, 9pF超小型石英晶體16-100MHz
發布時間:2025-06-11 08:55:06 瀏覽:512
Statek CX20 AT-CUT晶體,頻率范圍16 MHz至100 MHz,封裝尺寸2.5 x 1.2mm。
應用領域
醫療設備(如心臟節律管理、神經刺激器)
無線通信(如低功耗藍牙、醫療遙測)
國防和工業通信
關鍵規格
Fundamental Frequency | 16.0 MHz | 24.0 MHz |
Motiona Resitance R? (Ω) | 150 | 50 |
Motional Capacitance C? (fF) | 1.2 | 1.6 |
Quality Factor Q | 60,000 | 80,000 |
Shunt Capacitance C? (pF) | 0.7 | 0.8 |
Calibration Tolerance1 | ±30 ppm,or tighter as required | |
Load Capacitance | 9pF(unless specified otherwise) | |
Drive Level | 100 μW MAX | |
Frequency-Temperature Stability12 | ±50 ppm to±10 ppm(Commercial) ±100 ppm to ±30 ppm(Industrial) ±100 ppm to ±40 ppm(Military) | |
Aging,First Year | 3 ppm MAX | |
Shock Survival | Up to 75,000 g,0.3 ms,Y sine | |
Vibration Survival3 | 20 g,10-2,000 Hz swept sine | |
Operating Temperature Range | -10℃ to+70℃(Commercial) -40℃ to +85℃(Industrial) -55℃ to+125℃(Military) | |
Storage Temperature Range | -55℃ to +125℃ | |
Max Process Temperature | 260℃ for 20 seconds | |
Moisture Sensitivity Level(MSL) | This component is hermetically sealed and is not moisture sensitive. |

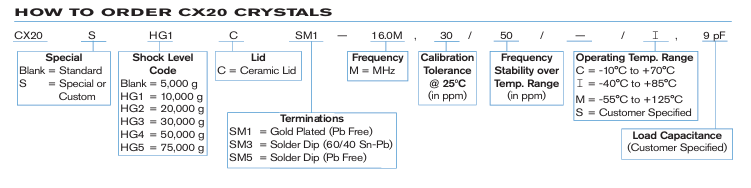

訂購指南:
Statek是一家成立于1970年的高科技公司,專注于設計和制造小型化、高可靠性的石英晶體、振蕩器和傳感器。其產品廣泛應用于高沖擊、高振動環境,如GPS、無線通訊等領域。深圳市立維創展科技公司優勢代理分銷Statek晶振產品,歡迎咨詢了解。
推薦資訊

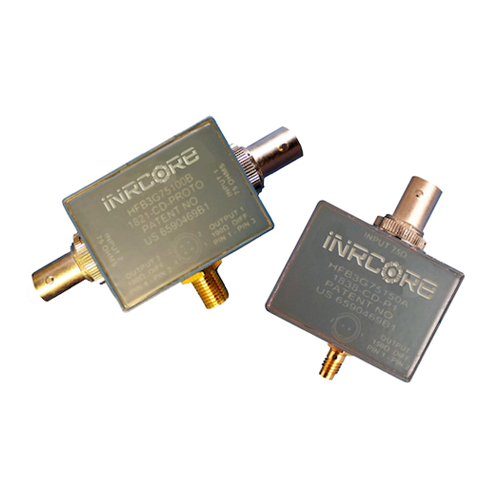

HFB050078,HFB050100,HFB050150,HFB075100A,HFB075100B,HFB075100D,HFB3G075100A,HFB3G075100B,HFB3G075150A,HFB3G075150B,HFB3GL075100A,HFB3GL075100B,HFB3GL075150A,HFB3GL075150B,HFBL075100A,HFBL075100B,HFBM075100B,HFBM075100C,HFBM075100S,TA-0501003G,TA-0501003GNL,TA-0750753G,TA-0750753GNL,TA-0751003G,TA-0751003GNL,TA-0751503G,TA-0751503GNL,TA-1001003G,TA-1001003GNL,T-050078,T-050100,T-050150,T-075100
